Engineered for high duty cycles, thermal performance, and strict ISO-compliant mechanical tolerance. Select a standard module or request custom OEM modification.
In modern industrial manufacturing, urban micro-mobility, high-density data centers, and advanced wearable hardware, the demand for modular frame swap technology has evolved from a convenience feature into a strategic operational imperative. As a global custom OEM frame swap supplier and exporter, our engineering ecosystem unifies heavy-duty metallurgy, robotic structural welding, high-precision hinge mechanics (such as proprietary SmartHinge™ systems), and electrical hot-swap interface integration.
Traditional fixed-structure assemblies present significant operational bottlenecks: prolonged maintenance downtimes, rigid component lifecycles, complex field repairs, and high total cost of ownership (TCO). By engineering standardized structural frames designed specifically for rapid mechanical decoupling and electrical re-connection, enterprise operators achieve unprecedented continuous uptime and operational versatility.
Definition of Information Gain in Frame Swap Systems: Next-generation frame swap engineering relies on three core metrics: Structural Deflection Resistance under Load, Insertion-Force Tolerances over 50,000+ Cycles, and Zero-Downtime Hot-Swappable Power Continuity. OEM buyers require precise metallurgical certifications and FEA stress modeling rather than cosmetic specifications.
The requirement for reliable, high-cycle swappable frames spans diverse industrial sectors:

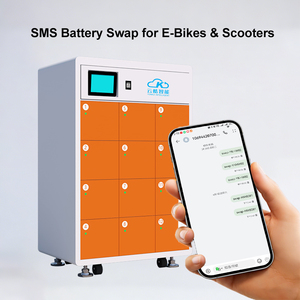

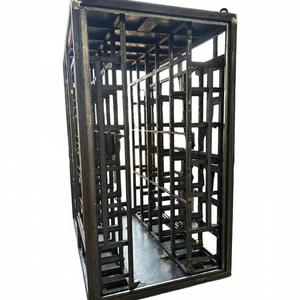

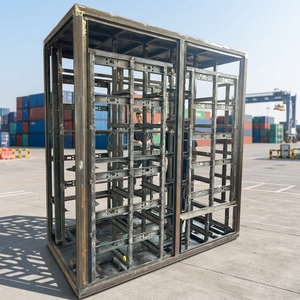

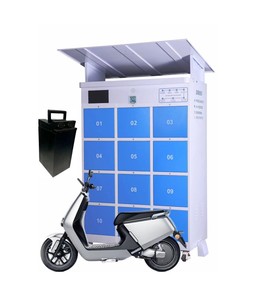

Heavy structural steel chassis featuring automated locking pins, thermal management channels, and anti-vandalism plating designed for 24/7 battery exchange stations.

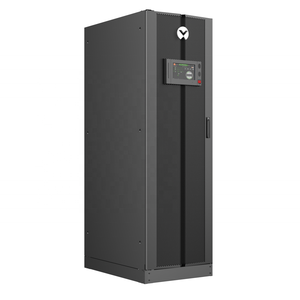

High-precision server cabinet frames allowing live hot-swapping of three-phase power modules up to 300kW without disrupting mission-critical infrastructure.
SmartHinge™ modular architecture allowing electronics-laden temples to detach seamlessly across prescription frames, sunglasses, and vision fronts.
To guarantee longevity under rigorous operational conditions, our engineering facilities implement strict metallurgical and mechanical standards during OEM production:
1. Heavy structural Steel Fabrication (Q235B & Q355B): For battery swap cabinets and machinery maintenance racks, robotic TIG/MIG welding ensures continuous seam integrity. Steel chassis undergo multi-stage surface treatments, including zinc phosphatizing and exterior-grade electrostatic powder coating to withstand C4/C5 ISO 12944 corrosive environments.
2. Extruded Architectural Aluminum (6063-T6 & 6061-T6): Used extensively in display boards, lightweight modular frames, and optical electronics hinges. CNC milling yields tolerances as tight as ±0.05mm, guaranteeing perfect alignment of quick-release latches and dynamic magnetic couplings.

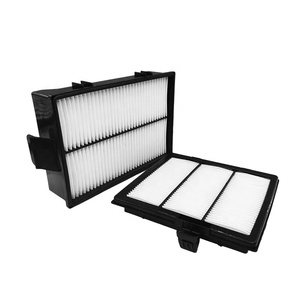

3. Engineered Composites & High-Impact Polymers: For commercial filtration units, automotive quick-swap filter bodies, and wearable housing elements, glass-filled nylon (PA66-GF30) and polycarbonate components provide optimal weight-to-strength ratios while isolating electrical contacts.
| Frame Category | Primary Alloy / Material | Machining Tolerance | Rated Swap Cycles | Environmental Protection |
|---|---|---|---|---|
| EV Battery Cabinet Chassis | Heavy Structural Q355B Steel | ±0.5 mm | 100,000+ Cycles | IP65 Weatherproof / Anti-Vandal |
| UPS Hot-Swap Power Rack | Cold-Rolled Electro-Galvanized Steel | ±0.1 mm | 15,000 Insertions | IP20 Indoor NEMA Enclosure |
| Quick-Swap Aluminum Frame | Anodized 6063-T6 Aluminum | ±0.05 mm | 30,000 Snap Action Cycles | Corrosion Resistant Anodized Finish |
| SmartHinge™ Wearable Frame | TR90 / Titanium Alloy Mechanical Hinge | ±0.02 mm | 20,000 Detach Cycles | IP54 Sweat & Rain Resistance |
| Industrial HVAC Filter Swap | High-Impact PA66-GF30 Polymer | ±0.2 mm | 5,000 Changeout Cycles | UL94-V0 Flame Retardant |
As global supply chains emphasize modularity, circularity, and rapid field serviceability, enterprise procurement officers and system integrators are shifting their technical requirements. Based on our analysis of global export contracts and patent filings, four key trends will dominate frame swap procurement through 2030:
Future battery and power swapping frames are no longer passive metal racks. Global buyers require integrated CAN Bus, RS485, and GSM modules embedded into the mechanical chassis to monitor latch engagement, internal temperature, and frame structural deformation in real time.
With automated robotic arm swaps becoming the standard in EV infrastructure, chassis tolerances must accommodate optical positioning sensors. Accumulative tolerance stack-ups must be minimized via fully automated robotic laser cutting and CNC tube bending.
Driven by international battery safety standards (UN 38.3, IEC 62619), multi-channel battery swap cabinets are adopting localized compartment isolation. Frames must incorporate expanding intumescent fire seals and automatic aerosol extinguishing cartridge mounts.
In consumer and wearable electronics, the frame swap mechanism represents a massive leap forward for sustainable manufacturing. By isolating long-life electronic components (temples, logic boards, batteries) from high-wear aesthetic elements (frame fronts, posters, air filter housings), companies drastically reduce electronic waste. Our OEM facilities empower brand partners to launch interchangeable series where end users update aesthetic fronts without re-purchasing core underlying technology.
Building on over a decade of high-precision optical, micro-display, and mechanical engineering heritage (developed through Kopin Corporation and advanced smart-eyewear research), our manufacturing plant stands as an industry leader in custom OEM frame swap fabrication. We provide end-to-end support for international distributors, system integrators, and brand owners.
Our modular mechanisms, including SmartHinge™ swappable connectors, magnetic quick-release interfaces, and structural latching systems, are backed by an extensive global patent portfolio.
Operating under ISO 9001:2015 and ISO 14001 certification, our facilities utilize high-precision CNC laser cutters, robotic welding cells, and 3D CMM inspection tools.
From initial DFM (Design for Manufacturing) consultation and rapid FEA stress simulation to global sea/air export packaging, we ensure your custom frames arrive on schedule and fully compliant.
Every custom swappable frame line undergoes rigorous testing before leaving our production floors:
Answers to essential technical, logistical, and custom engineering inquiries from international buyers and system integrators.
Partner with an industry-leading OEM/ODM frame swap manufacturer. Request a comprehensive engineering consultation, DFM analysis, or custom quotation for your enterprise project.
